Fully Powered Straddle Walkie Stacker - 3300 lbs Cap. - 118"-220"Lifting - CTDR15-III
The Fully Powered Straddle Walkie Stacker - 3300 lbs Cap. - 118"-220"Lifting - CTDR15-III are ideal tool for loading, unloading, and handling palletized goods in warehouses, supermarkets, workshops and homes.
Features & Specifications:
- M
- Model: CTD15R-III-118"
- Load Capacity: 3300 LBS
- Height, Mast Lowered: 84.4 inch
- Height, Mast Extended: 143.5 inch
- Fork Dimensions: 1.3*3.9*42 inch
- Lifting Speed(Laden/Unladen): 3.5/6.3 inch/s
- Gradeability (Laden/Unladen): 6%/15%
- Turning Radius: 65 inch
- Battery type: Lead Acid
- Battery Capacity: 24v/200Ah
- Service Weight: 2160 LBS
- Walkie electric stacker with straddle legs of load capacity 3300lbs
- Max lift height 118" / 177"(additional $1400) / 220"(additional $1800)
- Fork lowered height 2.75"

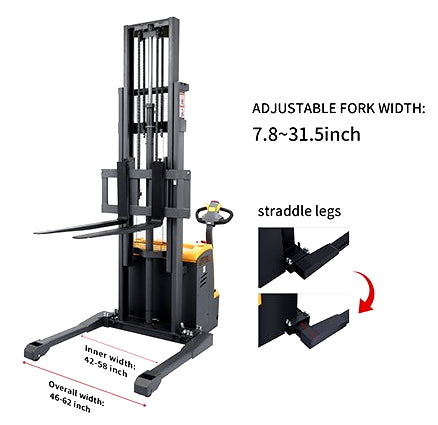

- Adjustable fork width 7.8"-31.5"
- Straddle legs width range from 46"-62"
- 8 Hours Battery Charging Time, 8 Hours Working Time
- CANbus technology reduces wiring complexity
- Efficient and energy-saving power unit
- 4 x 200Ah Lead-acid battery
- Warranty: One year
- Compact design for US type pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.
- AC brushless system intelligent zed regenerative brake system
- Suit for low level stacking and short distance transportation
- Built-in pressure relief valve protects the trucks from overloads
- With lifting limit switch to shut off pump motor at top max Lifting height
- Small turning radius standing drive motor system, water-proof and dust-proof motor structure
