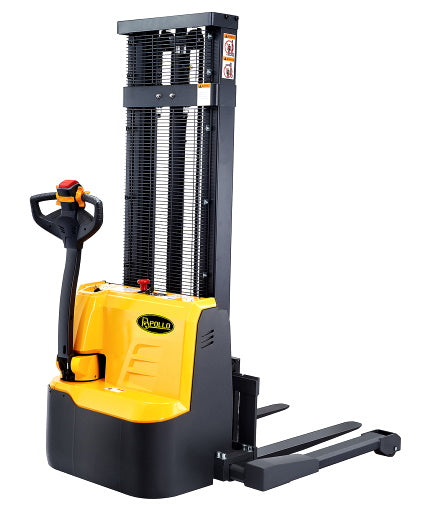

Fully Powered Straddle Stacker 3300lbs Capacity 98"/118" lifting - CTD15RE
The Fully Powered Straddle Stacker 3300lbs Capacity 98"/118" lifting - CTD15RE are ideal tool for loading, unloading, and handling palletized goods in warehouses, supermarkets, workshops and homes.
Features & Specifications:
- Model: CTD15RE
- Load capacity 3300lbs
- Load center distance: 23.6inch
- Max lift height ： 98" / 118"
- Service Weight(With Battery): 1420 LBS / 1466 LBS
- Height, Mast Lowered: 74.4"/84.3"
- Height, Mast Extended: 122" / 141.7"
- Fork lowered height 3.1"
- Fork Dimensions: 1.3"x3.9"x42"
- Lifting Speed(Laden/Unladen): 3.1"/4.3"
- Turning Radius: 58.7 inch
- Battery type: Gel
- Battery Capacity: 24/125 V/Ah
- Super light full electric stacker with load capacity 3300lbs
- Curtis handle with adjustable fork width 7.8"-31.5"
- 6 Hours Battery Charging Time, 6 Hours Working Time
- Straddle legs width range from 44"-60"
- Lifting by electric power, move by electric power
- Efficient and energy-saving power unit
- The charger is build in.
- Warranty: One year
- Compact design for US type pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.
- Small turning radius widely used in small warehouse and supermarket
- Suit for low level stacking and short distance transportation
- Back cover is integrated type design ,easy to assemble and maintain
- Gel battery free to maintain
- Built-in charger easy to access to power supply
